01Part-number led inquiry path
MMS4X00-NS can be used as the direct starting point for quotation, BOM sharing and availability discussion.
Optical transceivers• MMS4X00-NS

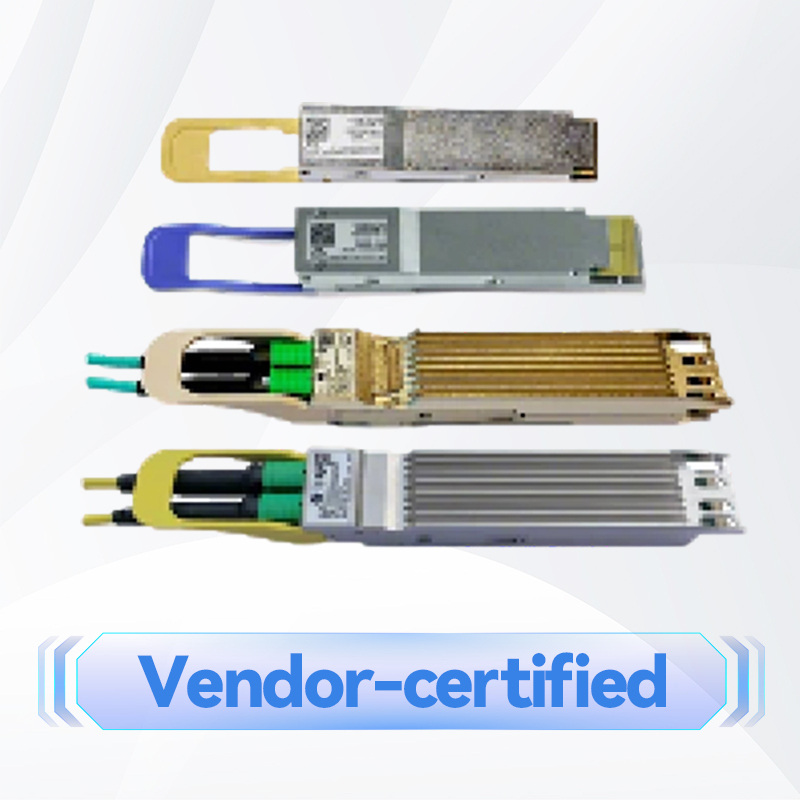

MMS4X00-Ns 800gbps Twin-Port Osfp 2X400GB/S Single Mode 2xdr4 100m Nvidia
NVIDIA MMS4X00-NS 800Gb/s twin-port OSFP DR8 single-mode optical transceiver. Features 2x400G ports, 100m reach, 100G-PAM4, and advanced thermal management for data centers.
RFQ
Inquiry ready
Clear path for part number, quantity and BOM-led contact.
EN / AR
Bilingual buyer flow
Useful for procurement teams coordinating technical review across regions.
Datasheet available
The product datasheet can be downloaded directly from this page.
Fast technical snapshotDatasheet available
MMS4X00-NS
Product photoCMS image ready
Selected specs
Deployment fit
25G / 100G / 400G / 800G optical links
Follow-up path
Quote / Compatibility / Availability
Prepared for part-number led and BOM-led requests
MMS4X00-NS
Product photoCMS image ready
Product media
From product visual to RFQ context
When product photography is available it appears here for faster review, and a clean technical outline remains useful for early evaluation when imagery is limited.
01Product imagery when available
02Clear technical outline for fast review
03Built for specification review before inquiry
Overview
Product overview
The NVIDIA MMS4X00-NS represents a breakthrough in data center connectivity as the industry's first 800Gb/s twin-port OSFP optical transceiver. This innovative DR8 (8-channel Datacenter Reach) module integrates two independent 400Gb/s transceiver engines within a single OSFP form factor, delivering unprecedented port density for Quantum-2 InfiniBand and Spectrum-4 Ethernet switches. Utilizing single-mode fiber technology with 100G-PAM4 modulation per channel, this transceiver achieves reliable transmission up to 100 meters while maintaining exceptional power efficiency. The finned-top design ensures optimal thermal management in air-cooled switch environments, providing a superior alternative to traditional passive fiber cable solutions.
Key features
- Twin-port design with two independent MPO-12/APC connectors: Up to 100m reach on single-mode fiber (SMF)
- Finned-top OSFP form factor for enhanced air cooling: 1310nm EML laser technology with 100G-PAM4 per lane
- Dual-protocol support: InfiniBand NDR and 400GbE Ethernet: Maximum power consumption: 17W (full operation)
- Low-power sleep mode: 1.5W / Comprehensive Digital Diagnostic Monitoring (DDM) per channel: Hot-pluggable and RoHS compliant
- This advanced Optical Fiber Cable transceiver employs cutting-edge 1310nm External Modulation Laser (EML) technology with PAM4 modulation to achieve exceptional data density. It complies with IEEE 802.3bs 400GBASE-DR4, InfiniBand NDR specifications, and OSFP MSA Rev. 1.12. The module features CMS 4.0 compliant management interface and supports adaptive equalization, ensuring signal integrity across demanding data center environments. The dual MPO-12/APC connectors with angled polish minimize back reflections, offering significant advantages over conventional passive fiber cable implementations.
- The transceiver incorporates two complete 400Gb/s transceiver engines that operate independently within a single housing. Each engine converts four electrical lanes of 53.125 GBd PAM4 signals into optical signals using integrated EML lasers. These optical signals are transmitted through eight dedicated fibers (four per port) within the MPO-12 connectors over single-mode Optical Fiber Cable . Advanced DSP technology provides signal retiming, adaptive input equalization, and output emphasis to maintain signal integrity. The module automatically detects connected fiber configurations, supporting straight 400Gb/s connections or splitter configurations that enable 200Gb/s operation with reduced power consumption.

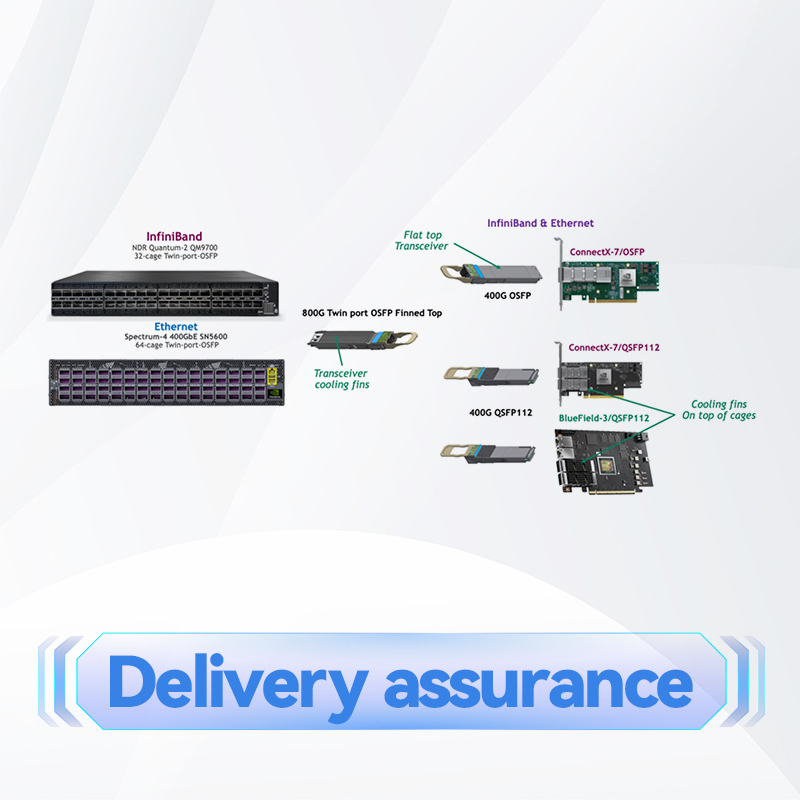

- High-density switch-to-switch interconnects in Quantum-2/InfiniBand NDR systems
- DGX H100 system connectivity to switching infrastructure: ConnectX-7 adapter and BlueField-3 DPU connectivity
Typical applications
- 25G / 100G / 400G / 800G optical links
- Switch-to-adapter interconnect
- Rack-to-rack optical deployment
Buying flow
How this product review turns into a real inquiry
This section gives buyers a practical handoff from technical review into quotation or compatibility follow-up.
01
Identify the exact target model
Start from MMS4X00-NS or the product name to reduce ambiguity before quotation starts.
02
Add quantity or deployment context
Share quantity, destination or BOM context so the commercial follow-up is aligned with the project scope.
03
Move into availability and fit review
Use the page as the handoff point for stock discussion, compatibility checks and delivery planning.
Technical snapshot
Trust signals
Why buyers use this page to review MMS4X00-NS
The page is designed to reduce the distance between specification review and a real commercial inquiry.
Review
02Compatibility review before follow-up
The MMS4X00-Ns 800gbps Twin-Port Osfp 2X400GB/S Single Mode 2xdr4 100m Nvidia page is positioned to support compatibility questions and project-fit review before commercial action is finalized.
Project
03Project and quantity alignment
This model can be framed against use cases such as 25G / 100G / 400G / 800G optical links together with quantity and rollout timing.
Language
04English and Arabic follow-up
The bilingual route supports regional buying teams that need technical review and RFQ handling in two languages.
FAQ
Frequently asked questions about MMS4X00-NS
Short answers that give buyers clearer expectations before they move into the quote form.
Can I request a quote for MMS4X00-NS directly from this page?01
Yes. This page is designed to move MMS4X00-NS review directly into quotation, availability or BOM discussion.
Does MMS4X00-NS support compatibility discussion before purchase?02
Yes. The page can be used to frame compatibility questions around 25G / 100G / 400G / 800G optical links before commercial follow-up.
Can MMS4X00-NS be compared with nearby models in the same family?03
Yes. Related products within the same category give buyers an internal comparison path before they submit an inquiry.
Can I send quantity or a BOM list with the inquiry?04
Yes. The inquiry path is designed to accept part numbers, quantity, BOM context and availability requirements in one submission.
Related products
Related products in the same family
Internal links that support model comparison and adjacent product discovery.
800G OSFP VR8• Optical transceivers
Advanced 800g Osfp Vr8 Transceiver for High-Performance Networks
800G OSFP VR8 multimode optical transceiver with 50m reach on OM4 fiber. Features dual MPO-12 APC connectors, CMIS 5.0 compliance, and supports 800G Ethernet and InfiniBand NDR applications.
800G OSFP VR8
Product photoCMS image ready
MMA1B00-E100• Optical transceivers
Advanced Nvidia Transceiver MMA1b00-E100 for Fast Data Transfer
Mellanox MMA1B00-E100 40GbE QSFP+ SR4 optical transceiver supports high-speed data transmission up to 150m over OM4 fiber. Features DDM, low power, and hot-pluggable design. Ideal for data centers and enterprise…
MMA1B00-E100
Product photoCMS image ready
MFM1T02A-SR• Optical transceivers
Duplex LC MMF Mellanox Optical Transceiver Module MFM1T02A-SR
Mellanox MFM1T02A-SR 10GbE SFP+ MMF optical transceiver. Supports 10Gb/s, 850nm, LC connector, up to 400m on OM4 fiber. Low power, DDM support, RoHS compliant.
MFM1T02A-SR
Product photoCMS image ready
- Lower power consumption compared to similar Optical Fiber Cable transceivers
- Broad compatibility with Mellanox and third-party switches
- Superior digital diagnostics for proactive network management
- All Mellanox transceivers come with a 1-year limited warranty covering parts repair or replacement. We offer 24/7 customer support and technical consultation to ensure seamless integration and operation.
Mellanox Optical Transceiver MMA4Z00-NS• Optical transceivers
MMA4Z00-NS mellanox optical transceiver Compatible 800G 2xSR4 OSFP PAM4 850nm 50m
NVIDIA MMA4Z00-NS 800Gb/s dual-port OSFP SR8 optical transceiver for high-density data centers. Supports 2x400G multimode, 50m reach, InfiniBand and Ethernet compatible with advanced thermal management.
Mellanox Optical Transceiver MMA4Z00-NS
Product photoCMS image ready
- CMIS 4.0 compliant with full DDM support
- Port Density Innovation: Dual-port design delivers twice the bandwidth in same form factor
- Protocol Agnostic: Automatic detection simplifies deployment across diverse environments
- Thermal Excellence: Advanced finned-top design enables sustained performance in dense configurations
MMA2P00-AS• Optical transceivers
Mellanox MMA2P00-AS 25GbE SR SFP28 Multi-Mode Optical Transceiver
The Mellanox MMA2P00-AS is a high-performance, pluggable SFP28 optical transceiver engineered for 25 Gigabit Ethernet networks. It represents a critical optical interconnect component that bridges the electrical…
MMA2P00-AS
Product photoCMS image ready
- Power Consumption (Typ. w/ CDR)
- IEEE 802.3bm 25GBASE-SR, SFF-8402, SFF-8472
- 25GbE SR SFP28, 850nm, up to 100m on OM4
- 25GbE SR SFP28, 850nm, up to 100m on OM4
MMA4Z00-NS400• Optical transceivers
NVIDIA MMA4Z00-NS400 400Gb/s OSFP SR4 Multimode Transceiver
400Gb/s OSFP SR4 transceiver for ConnectX-7, dual-protocol InfiniBand/Ethernet, 50m OM4 reach, MPO-12/APC connector, CMIS 4.0 compliant.
MMA4Z00-NS400
Product photoCMS image ready
- 400Gb/s (4x 100G PAM4) / 200Gb/s (2x 100G PAM4 in splitter mode)
- 8.5W at 400G; 5.5W at 200G; 2W in low-power mode
- CMIS 4.0 compliant, 2-wire serial (I²C) up to 400kHz
- Class 1M, CDRH 21 CFR 1040, IEC 62368
MMS4X00-NS400• Optical transceivers
NVIDIA MMS4X00-NS400 400G OSFP Transceiver DR4 Single-Mode for ConnectX-7 Adapters
400Gb/s OSFP transceiver with DR4 single-mode optics, 100m reach, dual InfiniBand/400GbE support, and auto-speed reduction to 200G with splitter cables.
MMS4X00-NS400
Product photoCMS image ready
- 400Gb/s (4x 100G-PAM4) or 200Gb/s (2x 100G-PAM4) auto-negotiated
- 1x MPO-12/APC (4 Tx + 4 Rx fibers)
- CMIS 4.0, I²C, DDM, loopback, PRBS
- NVIDIA ConnectX-7 OSFP adapters (400G and 200G modes)
