RFQ
01Part-number led inquiry path
MQM9700-NS2F can be used as the direct starting point for quotation, BOM sharing and availability discussion.
InfiniBand switches• MQM9700-NS2F
NVIDIA Quantum-2 QM9700-NS2F Managed InfiniBand Switch 64-Port 400G NDR 51.2 Tb/s Throughput P2C Airflow
High-performance 64-port 400G InfiniBand switch with 51.2 Tb/s throughput, SHARPv3 acceleration, and P2C airflow for AI/HPC clusters.
RFQ
Inquiry ready
Clear path for part number, quantity and BOM-led contact.
EN / AR
Bilingual buyer flow
Useful for procurement teams coordinating technical review across regions.
Datasheet available
The product datasheet can be downloaded directly from this page.
Fast technical snapshotDatasheet available
MQM9700-NS2F
Product photoCMS image ready
Selected specs
Ordering code
MQM9700-NS2F(920-9B210-00FN-0M0)
51.2 Tb/s aggregate bidirectional throughput; >66.5 billion packets per second (BPPS)
x86 Coffee Lake i3, 8GB DDR4 SO-DIMM (2666 MT/s), 16GB M.2 SSD
1x USB 3.0, 1x USB (I2C), 1x RJ45 (Ethernet), 1x RJ45 (UART)
1+1 redundant, hot-swappable, 200–240Vac, 80 PLUS Gold+ certified
1.7 in (43.6 mm) x 17.0 in (438 mm) x 26.0 in (660.4 mm)
Temperature: 0°C to 40°C; Humidity: 10% to 85% non-condensing; Altitude up to 3050m
Deployment fit
AI & Machine Learning Clusters: High-radix NDR switches enable massive GPU supercomputing pods with SHARPv3 accelerating NCCL collectives.
Follow-up path
Quote / Compatibility / Availability
Prepared for part-number led and BOM-led requests
MQM9700-NS2F
Product photoCMS image ready
Product media
From product visual to RFQ context
When product photography is available it appears here for faster review, and a clean technical outline remains useful for early evaluation when imagery is limited.
01Product imagery when available
02Clear technical outline for fast review
03Built for specification review before inquiry
Overview
Product overview
Built on the NVIDIA Quantum-2 platform, the QM9700 series redefines data center switching density and efficiency. The QM9700-NS2F (managed, P2C forward airflow) integrates 64 ports of 400Gb/s InfiniBand in a compact 1U chassis. It supports port-split technology to deliver up to 128 ports of 200Gb/s, offering flexible topologies like Fat Tree, DragonFly+, SlimFly, and multi-dimensional Torus. Backward compatibility with previous InfiniBand generations ensures smooth integration into existing infrastructure. With advanced telemetry, congestion control, and self-healing network capabilities, this switch maximizes application throughput while simplifying operations.
Key features
- 32 OSFP cages supporting 400G NDR or 128x200G via splitter cables, delivering the densest top-of-rack InfiniBand switch in 1U form factor.

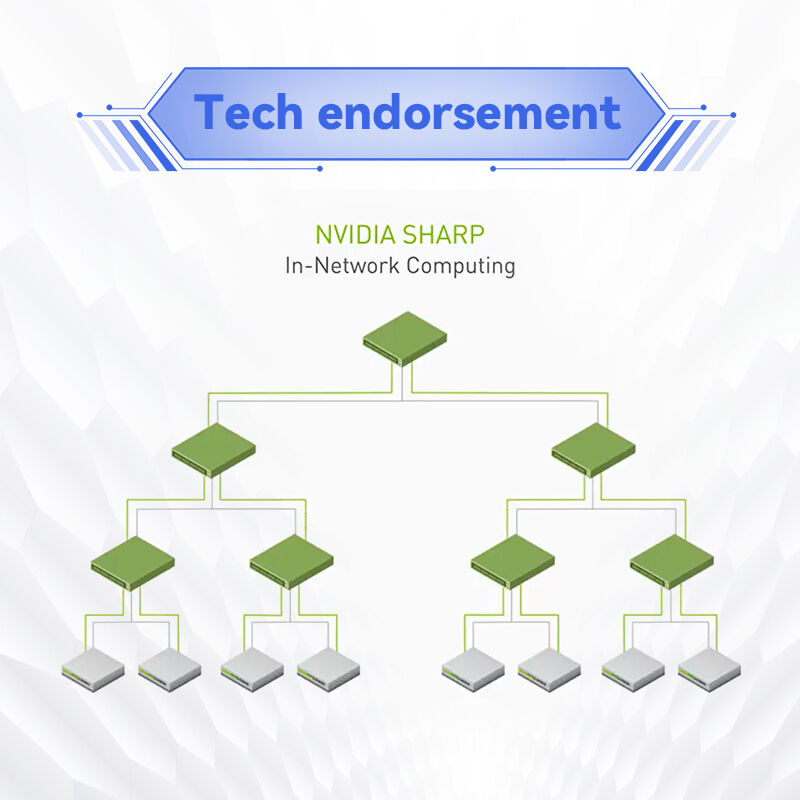

- Third-generation NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol accelerates AI collective operations by up to 32X, reducing data movement and latency.
- Remote Direct Memory Access (RDMA) and adaptive routing eliminate bottlenecks, while enhanced virtual lane mapping and congestion control maintain consistent performance.
- Automatic failover, link-level retransmission, and advanced monitoring capabilities ensure non-disruptive operations for mission-critical workloads.
- On-board subnet manager supports up to 2000 nodes out-of-the-box; full chassis management via CLI, WebUI, SNMP, and JSON/REST API.
- Optimized for scalable, cost-effective cluster designs; double-density radix reduces network layers and lowers total cost of ownership.
- The Quantum-2 platform integrates NVIDIA’s latest 400G SerDes technology, delivering 51.2 Tb/s of switching capacity. Key innovations include SHARPv3 in-network computing, which offloads collective operations from compute nodes, drastically improving AI training efficiency. The switch leverages Remote Direct Memory Access (RDMA) to bypass kernel overhead, achieving microsecond-scale latency. Adaptive routing dynamically distributes traffic across multiple paths to avoid hotspots, while enhanced quality of service (QoS) and virtual lane (VL) mapping guarantee bandwidth for critical applications. The QM9700-NS2F also incorporates advanced telemetry for real-time fabric monitoring and self-healing capabilities that automatically re-route traffic around link failures.
Typical applications
- AI & Machine Learning Clusters: High-radix NDR switches enable massive GPU supercomputing pods with SHARPv3 accelerating NCCL collectives.
- HPC Research Centers: SlimFly or Fat Tree topologies connect thousands of nodes with ultra-low latency for weather simulation, genomics, and physics.
- Enterprise Data Centers: Consolidate East-West traffic with 400G spine-and-leaf architecture, reducing tier count and operational costs.
- Cloud & Hyperscale: DragonFly+ and multi-dimensional torus for maximum scalability with high bandwidth density per rack unit.
- Storage & IO Expansion: Connect high-performance storage systems using NVMe over Fabrics (NVMe-oF) via InfiniBand.
Buying flow
How this product review turns into a real inquiry
This section gives buyers a practical handoff from technical review into quotation or compatibility follow-up.
01
Identify the exact target model
Start from MQM9700-NS2F or the product name to reduce ambiguity before quotation starts.
02
Add quantity or deployment context
Share quantity, destination or BOM context so the commercial follow-up is aligned with the project scope.
03
Move into availability and fit review
Use the page as the handoff point for stock discussion, compatibility checks and delivery planning.
Technical snapshot
- Ordering code
- MQM9700-NS2F(920-9B210-00FN-0M0)
- 51.2 Tb/s aggregate bidirectional throughput; >66.5 billion packets per second (BPPS)
- x86 Coffee Lake i3, 8GB DDR4 SO-DIMM (2666 MT/s), 16GB M.2 SSD
- 1x USB 3.0, 1x USB (I2C), 1x RJ45 (Ethernet), 1x RJ45 (UART)
- 1+1 redundant, hot-swappable, 200–240Vac, 80 PLUS Gold+ certified
- 1.7 in (43.6 mm) x 17.0 in (438 mm) x 26.0 in (660.4 mm)
- Temperature: 0°C to 40°C; Humidity: 10% to 85% non-condensing; Altitude up to 3050m
Trust signals
Why buyers use this page to review MQM9700-NS2F
The page is designed to reduce the distance between specification review and a real commercial inquiry.
Review
02Compatibility review before follow-up
The NVIDIA Quantum-2 QM9700-NS2F Managed InfiniBand Switch 64-Port 400G NDR 51.2 Tb/s Throughput P2C Airflow page is positioned to support compatibility questions and project-fit review before commercial action is finalized.
Project
03Project and quantity alignment
This model can be framed against use cases such as AI & Machine Learning Clusters: High-radix NDR switches enable massive GPU supercomputing pods with SHARPv3 accelerating NCCL collectives. together with quantity and rollout timing.
Language
04English and Arabic follow-up
The bilingual route supports regional buying teams that need technical review and RFQ handling in two languages.
FAQ
Frequently asked questions about MQM9700-NS2F
Short answers that give buyers clearer expectations before they move into the quote form.
Can I request a quote for MQM9700-NS2F directly from this page?01
Yes. This page is designed to move MQM9700-NS2F review directly into quotation, availability or BOM discussion.
Does MQM9700-NS2F support compatibility discussion before purchase?02
Yes. The page can be used to frame compatibility questions around AI & Machine Learning Clusters: High-radix NDR switches enable massive GPU supercomputing pods with SHARPv3 accelerating NCCL collectives. before commercial follow-up.
Can MQM9700-NS2F be compared with nearby models in the same family?03
Yes. Related products within the same category give buyers an internal comparison path before they submit an inquiry.
Can I send quantity or a BOM list with the inquiry?04
Yes. The inquiry path is designed to accept part numbers, quantity, BOM context and availability requirements in one submission.
