01Part-number led inquiry path
MQM8790-HS2R can be used as the direct starting point for quotation, BOM sharing and availability discussion.
InfiniBand switches• MQM8790-HS2R
NVIDIA Quantum MQM8790-HS2R 200G InfiniBand Switch Unmanaged, 40-Port 16Tb/s, C2P Airflow UFM Ready
High-performance 200G InfiniBand switch with 40 QSFP56 ports, 16Tb/s throughput, and UFM-ready for AI clusters & HPC data centers.
RFQ
Inquiry ready
Clear path for part number, quantity and BOM-led contact.
EN / AR
Bilingual buyer flow
Useful for procurement teams coordinating technical review across regions.
Datasheet available
The product datasheet can be downloaded directly from this page.
Fast technical snapshotDatasheet available
MQM8790-HS2R
Product photoCMS image ready
Selected specs
Ordering code
MQM8790-HS2R(920-9B110-00RH-0D0)
Deployment fit
Large‑Scale AI & ML Clusters – GPU‑based systems requiring centralized fabric management and telemetry across hundreds or thousands of nodes.
Follow-up path
Quote / Compatibility / Availability
Prepared for part-number led and BOM-led requests
MQM8790-HS2R
Product photoCMS image ready
Product media
From product visual to RFQ context
When product photography is available it appears here for faster review, and a clean technical outline remains useful for early evaluation when imagery is limited.
01Product imagery when available
02Clear technical outline for fast review
03Built for specification review before inquiry
Overview
Product overview

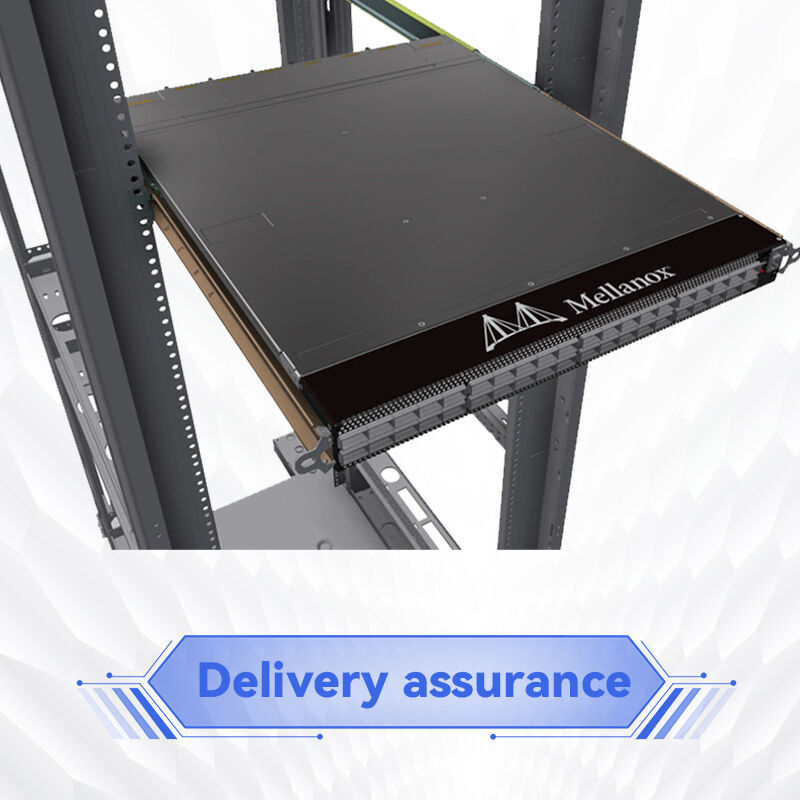

The NVIDIA Quantum MQM8790‑HS2R is an unmanaged 200G InfiniBand smart switch designed for large‑scale data center deployments where centralized fabric management is preferred. Part of the NVIDIA Quantum QM8700 series, this switch delivers forty 200Gb/s ports in a compact 1U form factor with 16 Tb/s aggregate non‑blocking throughput and sub‑130ns cut‑through latency. Unlike its managed counterparts, the MQM8790‑HS2R is optimized for external management via NVIDIA Unified Fabric Manager (UFM), enabling data center operators to efficiently provision, monitor, troubleshoot, and maintain modern data center fabrics at scale. Each 200Gb/s QSFP56 port can be split into two independent 100Gb/s ports, providing up to 80 ports of 100Gb/s connectivity — ideal for double‑density top‑of‑rack deployments. The MQM8790‑HS2R features C2P (power‑to‑port) airflow, dual redundant power supplies, and full support for NVIDIA SHARP in‑network computing acceleration.
Key features
- 200Gb/s InfiniBand per port – forty QSFP56 ports supporting 200G or 100G split modes, non‑blocking architecture.
- Unmanaged SKU for External Control – No on‑board Subnet Manager; designed for centralized management via NVIDIA UFM platform.

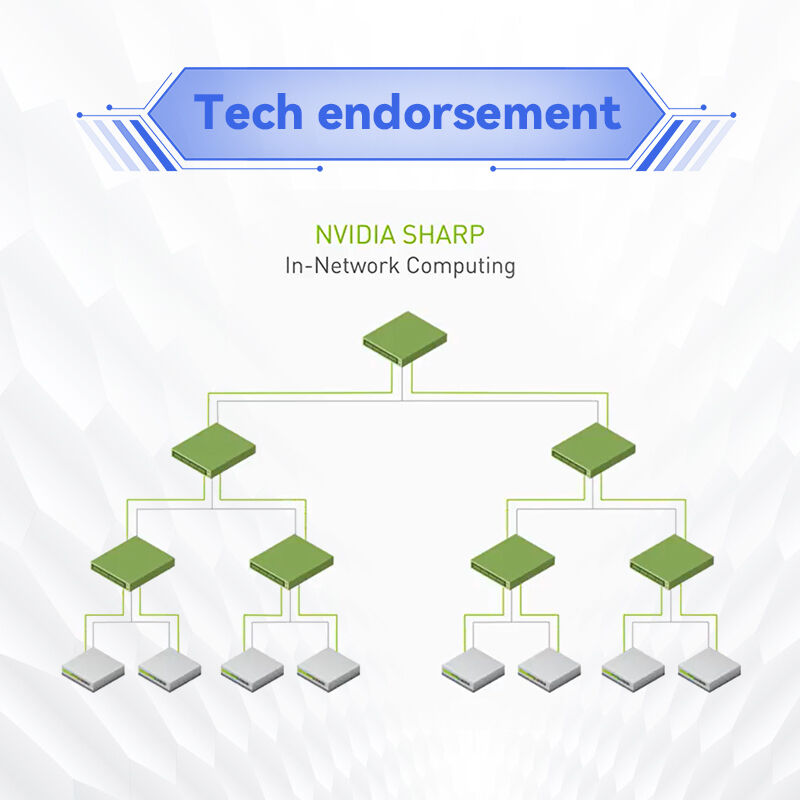

- In‑Network Computing Acceleration – NVIDIA SHARP technology enables in‑switch data aggregation, reducing MPI, NCCL, and SHMEM communication time by orders of magnitude.
- High Radix & Split Capability – Convert 40x 200G ports into 80x 100G ports for double‑density topologies without extra switches.
- Advanced Congestion Management – Adaptive routing, static routing, and quality of service (QoS) to eliminate hot spots and maximize effective fabric bandwidth.
- Redundant & Hot‑Swappable PSU – 1+1 redundant power, 80 Plus Gold certified, ENERGY STAR compliant, with power optimization on partial port usage.
- C2P Airflow Configuration – Power‑to‑port airflow direction ideal for data center cooling schemes that require rear‑to‑front airflow.
- UFM Ready – Seamless integration with NVIDIA Unified Fabric Manager for advanced telemetry, predictive analytics, and automated fabric orchestration.
Typical applications
- Large‑Scale AI & ML Clusters – GPU‑based systems requiring centralized fabric management and telemetry across hundreds or thousands of nodes.
- High‑Performance Computing (HPC) – Research labs, national labs, and universities where external fabric managers provide enhanced monitoring and automation.
- Hyperscale Data Centers – Fat‑tree, DragonFly+, and multi‑dimensional torus topologies managed through UFM for maximum efficiency.
- Enterprise & Cloud Service Providers – Environments requiring unified control plane across multiple switch fabrics.
- Top‑of‑Rack (ToR) with Centralized Management – Double‑density 100Gb/s per server connectivity with fabric‑wide visibility, utilizing C2P airflow for rear‑to‑front cooling designs.
Buying flow
How this product review turns into a real inquiry
This section gives buyers a practical handoff from technical review into quotation or compatibility follow-up.
01
Identify the exact target model
Start from MQM8790-HS2R or the product name to reduce ambiguity before quotation starts.
02
Add quantity or deployment context
Share quantity, destination or BOM context so the commercial follow-up is aligned with the project scope.
03
Move into availability and fit review
Use the page as the handoff point for stock discussion, compatibility checks and delivery planning.
Technical snapshot
- Ordering code
- MQM8790-HS2R(920-9B110-00RH-0D0)
Trust signals
Why buyers use this page to review MQM8790-HS2R
The page is designed to reduce the distance between specification review and a real commercial inquiry.
Review
02Compatibility review before follow-up
The NVIDIA Quantum MQM8790-HS2R 200G InfiniBand Switch Unmanaged, 40-Port 16Tb/s, C2P Airflow UFM Ready page is positioned to support compatibility questions and project-fit review before commercial action is finalized.
Project
03Project and quantity alignment
This model can be framed against use cases such as Large‑Scale AI & ML Clusters – GPU‑based systems requiring centralized fabric management and telemetry across hundreds or thousands of nodes. together with quantity and rollout timing.
Language
04English and Arabic follow-up
The bilingual route supports regional buying teams that need technical review and RFQ handling in two languages.
FAQ
Frequently asked questions about MQM8790-HS2R
Short answers that give buyers clearer expectations before they move into the quote form.
Can I request a quote for MQM8790-HS2R directly from this page?01
Yes. This page is designed to move MQM8790-HS2R review directly into quotation, availability or BOM discussion.
Does MQM8790-HS2R support compatibility discussion before purchase?02
Yes. The page can be used to frame compatibility questions around Large‑Scale AI & ML Clusters – GPU‑based systems requiring centralized fabric management and telemetry across hundreds or thousands of nodes. before commercial follow-up.
Can MQM8790-HS2R be compared with nearby models in the same family?03
Yes. Related products within the same category give buyers an internal comparison path before they submit an inquiry.
Can I send quantity or a BOM list with the inquiry?04
Yes. The inquiry path is designed to accept part numbers, quantity, BOM context and availability requirements in one submission.
